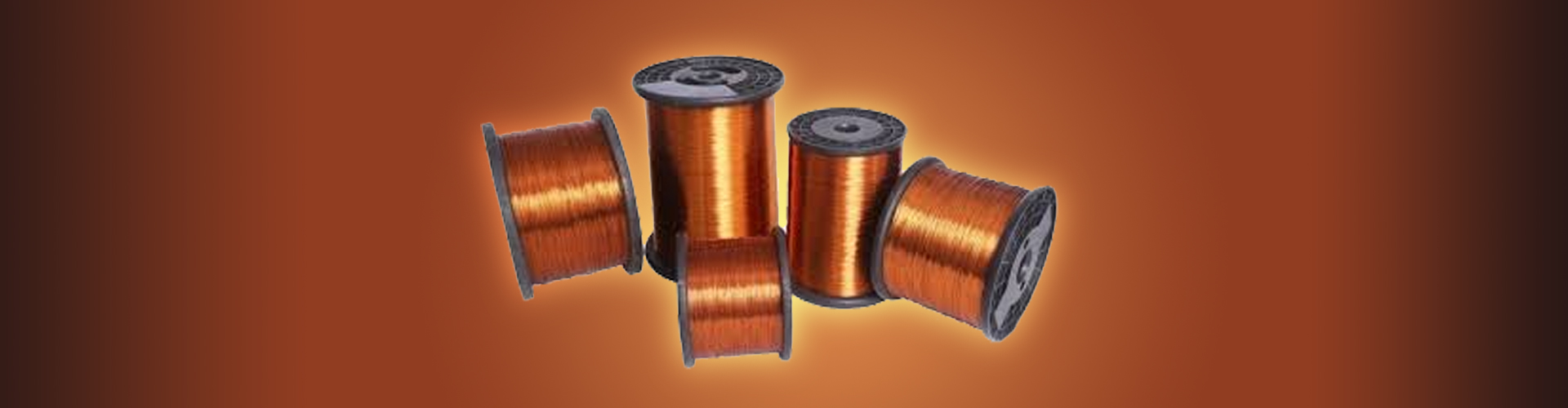

Enamelled Copper Winding Wires
Enamelled Copper Winding Wires
Class Of Insulation :
| Name |
Thermal Class |
IS Specification |
Grade |
| IS |
IEC |
NEMA |
| Polyester |
Class 130 |
IS 13730-34 |
IEC-60317-34 |
--- |
Fine, Medium, Heavy |
| Modified Polyester |
Class 155 |
IS 13730-03 |
IEC-60317-03 |
NEMA MW-05C |
Fine, Medium, Heavy |
| Polyesterimide |
Class 180 |
IS 13730-08 |
IEC-60317-8 |
NEMA MW-30C |
Fine, Medium, Heavy |
| Polyesterimide + amideimide/DC |
Class 200 |
IS 13730-13 |
IEC-60317-13 |
NEMA MW-35C / 73C (Hermetic) |
Fine, Medium, Heavy |
| Self Solderable |
Class 130,155,180 |
IS 13730-04, 20 & 23 |
IEC-60317-04, 20 & 23 |
NEMA MW-75C/79C/77C |
Fine, Medium, Heavy |
Range Of Size
Minimum 0.2 mm to maximum 4.0 mm
| Gauge No. |
SWG |
AWG |
| MM |
MM |
| 8 |
4.064 |
3.264 |
| 9 |
3.658 |
2.906 |
| 10 |
3.251 |
2.588 |
| 11 |
2.946 |
2.305 |
| 12 |
2.642 |
2.053 |
| 13 |
2.337 |
1.828 |
| 14 |
2.032 |
1.628 |
| 15 |
1.829 |
1.450 |
| 16 |
1.626 |
1.291 |
| 17 |
1.422 |
1.150 |
| 18 |
1.219 |
1.023 |
| 19 |
1.016 |
0.911 |
| 20 |
0.914 |
0.811 |
| 21 |
0.813 |
0.723 |
| 22 |
0.711 |
0.643 |
| 23 |
0.610 |
0.573 |
| 24 |
0.559 |
0.510 |
| 25 |
0.508 |
0.454 |
| 26 |
0.457 |
0.404 |
| 27 |
0.417 |
0.360 |
| 28 |
0.376 |
0.321 |
| 29 |
0.345 |
0.287 |
| 30 |
0.315 |
0.254 |
| 31 |
0.295 |
0.226 |
| 32 |
0.274 |
0.203 |
| 33 |
0.254 |
0.180 |
| 34 |
0.234 |
0.160 |
| 35 |
0.213 |
0.008 |
| 36 |
0.193 |
0.127 |
| 37 |
0.173 |
0.114 |
| 38 |
0.152 |
0.102 |
Applications :
APPLIANCES
AUTOMOTIVE
ELECTRONIC
Surface Mounted Transformer
Transformer
Packing Details :
Tape
Spools- PT 10 to PT 180
Parallel Spools- As per DIN
standards
